     1. General information

     The FSUE “Rosmorport” North-Western Basin Branch performs contract-based hydrographic works in water areas of the seaports Big Port Saint Petersburg, Kaliningrad, Passenger Port Saint Petersburg, Primorsk, Ust-Luga, Vyborg and Vysotsk.

     In particular, the Branch performs:

     in the seaports Big Port Saint Petersburg and Passenger Port Saint Petersburg:

  • bottom relief survey;
  •  coastline map survey.



     in the seaport of Kaliningrad:

  • bottom relief survey;
  • coastline map survey;
  • ensuring planned and vertical positioning of various stationary coastal facilities used for navigation and hydrographic support of seafaring.



     in the seaport of Primorsk, Ust-Luga, Vyborg and Vysotsk:

  • bottom relief survey.



     Detailed survey materials are applicable for correction of nautical charts, guidelines and manuals for navigation, dredging works planning.

     To carry out the corresponding works, the North-Western Basin Branch has highly qualified staff with a wide experience in the field of hydrography and geodesy, and also the necessary equipment and technical means:



    in the seaports Big Port Saint Petersburg, Passenger Port Saint Petersburg and Primorsk:

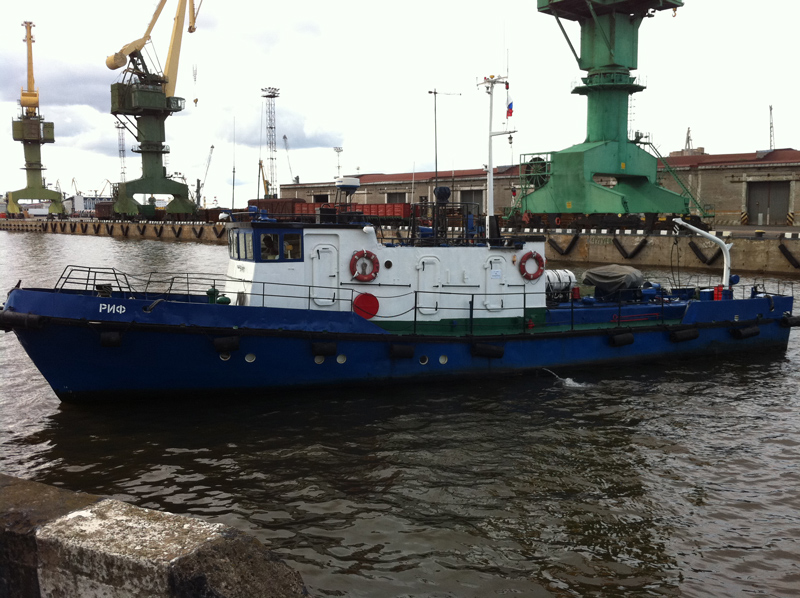

  • BGK-326 Rif tending vessel equipped with:

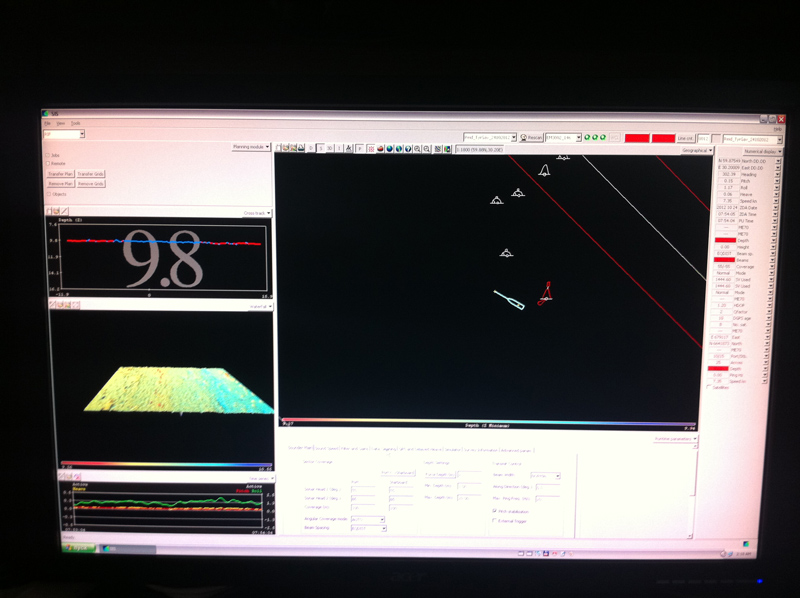

  • a) automated surveying complex on the basis of Simrad EM 3002 multibeam echo sounder;
  • b) Trimble SPS 461GPS receiver;
  • c) SeaBat T-20 and Navisound 110 single beam echo sounders.
  • the Luchisty survey motorboat equipped with

  • a) the automated surveying system based on the Kongsberg EM 2040C multi-beam echosounder with one acoustic array;

  • b) the Trimble SPS-461 two-array GPS receiver with the head marker and differential corrections;

  • c) the Valeport MiniSVS sound speed sensing device in the water;

  • d) the Kongsberg Seatex MRU-5 vessel dynamic relocation (motion) sensing device;

  • e) the Seafloor Information System software for collecting and processing data of the multi-beam echosounder aboard a vessel.


    in the seaport of Kaliningrad:

  • Afrodita hydrographic boat equipped with:
  • a) automated surveying complex on the basis of Kongsberg EM 3002 multibeam echo sounder;
  • b) Hemisphere VS131 GPS Compass;
  • c) Smart SV&P sound velocity sensor;
  • d) Seatex MRU-5 Motion Sensor;
  • e) specialized software for data acquisition and processing SIS.
  • RZhD 07-31 small hydrographic boat equipped with:
  • a) Kongsberg EA-400 single beam echo sounder;
  • b) EdgeTech- 4125 Side Scan Sonar System;
  • c) Hemisphere VS111 GPS Compass;
  • d) Kongsberg Seatex MRU-5 vessel dynamic relocation (motion) sensing device;
  • e) HYPACK MAX specialized software for data acquisition and processing;
  • Meridian hydrographic boat equipped with:
  • а) automated survey complex on the basis of Kongsberg EM 2040С Dual multibeam echo sounder with two acoustic antennas;
  • b) Navsight Marine EKINOX-I-B IMU inertial navigation system;
  • c) SWIFT SVPs wireless sound velocity profiler;
  • d) QINSy Survey software for collecting and processing multibeam echosounder data directly on the vessel and QINSy Office software for post-processing and office processing of data in steady-state conditions.
  • Apache-3 unmanned aquatic vehicle equipped with:
  • а) rotary video camera;
  • b) radar;
  • c) inertial navigation system with Real Time Kinematic mode (real time kinematics);
  • d) hydrographic single-beam echo sounder D230.


    in the seaport of Ust-Luga, Vyborg and Vysotsk:

  • Lotsman I pilot boat equipped with:
  • a) automated surveying complex on the basis of Kongsberg EM 2040C multibeam echo sounder;
  • b) Trimble GPS receiver;
  •  the Solyaris hydrographic survey boat equipped with
  • a) automatic survey complex based on the Kongsberg EM 2040C multibeam echo sounder with one acoustic array;
  • b) Trimble SPS-461 dual array GPS receiver capable of providing heading indication and receiving differential corrections;
  • c) Valeport MiniSVP water velocity sensor;
  • d) Kongsberg Seatex MRU-5 motion reference unit;
  • e) two QINSy Survey software units for gathering and processing data of the multibeam echo sounder on the vessel, as well as QINSy Office and Qimera for post-processing and office processing of data in steady-state conditions.



     Materials processing is performed with software Hypack, Caris HIPS and SIPS Pro.





     2. Procedure for provision of geodesic and hydrographic Services

     To order the corresponding hydrographic works in the seaports Big Port Saint Petersburg, Kaliningrad and Passenger Port Saint Petersburg water areas, performed by the North-Western Basin Branch, it is necessary to file a written application to the North-Western Basin Branch by fax: +7 (812) 327-40-23 or to send a scan by e-mail: mail@spb.rosmorport.ru .

     The application will be considered within 10 days and according to the results, the customer will receive a written response indicating the technical ability, terms of performance and cost of the requested works. In case of positive reply, a draft contract will be sent to the customer for signing. The Contract for works performing signed by the customer must be returned to the North-Western Basin Branch.
     The works are carried out by the North-Western Basin Branch in accordance with the terms of a technical project, which is an integral part of the Contract, in the manner and terms established by the Contract.


     Information on the costs of the g eodesic and hydrographic Services rendered by the North-Western Basin Branch is given in the section “Harbor Dues and Tariffs of the North-Western Basin Branch”.

     3. Statistics



     Information on the scope of the performed surveying works in the seaports Big Port Saint Petersburg, Kaliningrad, Passenger Port Saint Petersburg, Primorsk, Ust-Luga, Vyborg and Vysotsk


Year

km
km²
2023 58.3
2022 39.6
2021
42.4
2020
49.1
2019
48.7
2018
69.7
2017
51.9
2016
43.58
2015
62.9
2014 76.3
2013 34.6

Year

km
km²
2023 2.4
2022 2.2
2021
2.2
2020
2.2
2019
2.2
2018
2.2
2017
2.2
2016
2.2
2015

2014
2013

Year

km
km²
2023
34.4
2022
33.5
2021
29.7
2020
20
2019
19.7
2018
16.3
2017
16.3
2016
16.3
2015

2014
2013

Year

km
km²
2023 98.6 33.2
2022 222.8 36.6
2021 176.8 40
2020 263.2 37.2
2019 188.1 31.9
2018 225.5 28.7
2017 302.5 38
2016 542.9 22.34
2015 301 22.6
2014 397.8 21
2013 255 26.7

Year

km
km²
2023
1.9
2022
1.9
2021
1.9
2020
3.5
2019
3.5
2018
3.5
2017
2.1
2016
3.94
2015
3.94
2014 3.94
2013 3.94

Year

km
km²
2023
2022
22.5
2021

2020
2019

2018

2017
2016

2015

2014
2013

Year

km
km²
2023 27.4
2022 8.9 25.3
2021
24
2020
28
2019
26.5
2018
26.6
2017
19.9
2016 25.81
2015
36.4
2014 25.7
2013 21.2


     4. Contacts

     Additional information on procedure of provision by the North-Western Basin Branch of geodesic and hydrographic Services in the seaports Big Port Saint Petersburg, Kaliningrad, Passenger Port Saint Petersburg, Primorsk, Ust-Luga, Vyborg and Vysotsk can be obtained:


     Seaports Big Port Saint Petersburg and Passenger Port Saint Petersburg

     by phone (Monday to Friday from 8:30 to 17:00, Moscow time, lunch break from 12-30 to 13-00):

     +7 (812) 714-98-27;

     +7 (921) 940-65-28,

     or by sending a request by fax: +7 (812) 324-57-57, or e-mail: S.Pakhomov@spb.rosmorport.ru


     Seaport of Kaliningrad

     by phone (Monday to Friday from 8:30 to 17:00, Kaliningrad time, lunch break from 12-30 to 13-30:

     +7 (4012) 36-21-06;

     +7 (921) 260-90-36,

     or by sending a request by fax: +7 (4012) 36-21-02, or e-mail: S.Sologub@kld.rosmorport.ru


     Seaports of Vyborg, Vysotsk, and Primorsk

     by telephones +7(81378) 32-481 and +7(921) 952-72-16 (Monday-Friday from 8:30 a.m. to 5:00 p.m., the break is from 12:30 to 1:00 p.m.)

     or send a request by fax +7(81378) 324-81 or by e-mail E.Kislitsyn@spb.rosmorport.ru


     Seaport of Ust-Luga

     by phone (Monday to Friday from 8:30 to 17:00, Moscow time, lunch break from 12-30 to 13-00):

     +7 (81375) 910-46;

     +7 (921) 931-21-43,

     or by sending a request by fax: +7 (81375) 910-46, or e-mail: D.Andriyanov@spb.rosmorport.ru
